Description

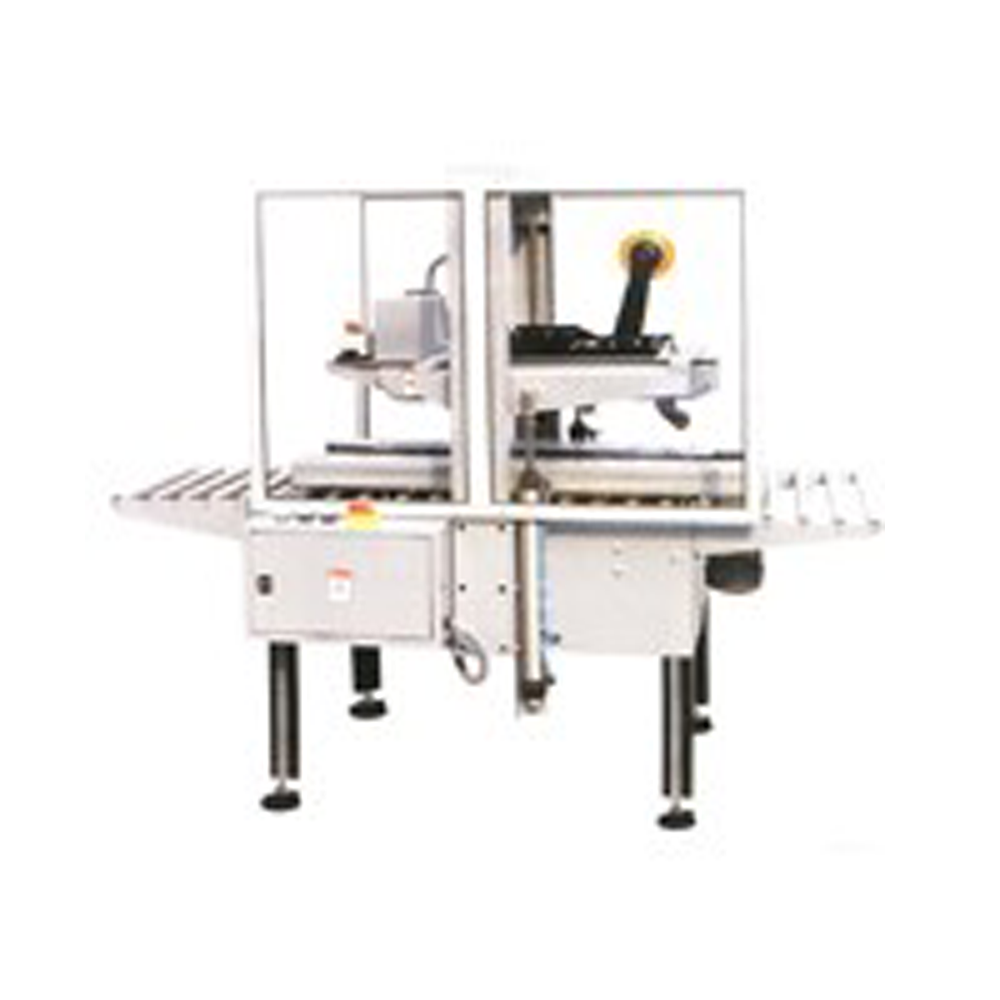

The GCS4545-M2 meets all the expected performances and versatility for a self-adhesive tape sealing machine, for boxes of different sizes randomly mixed.
Box size adjustment is automatic. Just pushing the start button, switch on compressed air inlet and the machine will be ready to accept fillet cartons with folded lower flaps. The operator-fed boxes will then have upper and lower flaps automatically taped.
Both top and bottom taping heads are easily removable, without tools, to enable an easy tape roll refill.
Top and Bottom taping head, 72mm, width (3”)
Pneumatic self- adjustment to box height and width
One single motor for synchronized side belt drive
Height adjustable legs
Upper structure supported by 2 strong masts
Inbuilt air filtering and lubricating system
Adjustable main air pressure gauge with regulator
Width and height adjustment independently set with individual gauge
| MODEL | M2 |
| Power supply |
1p 110V/220V 50Hz/60Hz 400W
|
| Sealing speed | 22 meters/min |
| Carton size |
L(150-∞)×W(120-500)×H(120-500)mm
|
| Tape size |
48-72mm(Kraft or BOPP tape)
|
| Machine size |
L(1114)×W(1050)×H(1430)mm
|
| Shipping size |
L(1300)×W(1150)×H(1530)mm
|
| G.W/N.W | 300kg/250kg |
| Optional |
①Extension roller table ②Feet wheel ③Guard ④Not Stainless steel
|
