Description

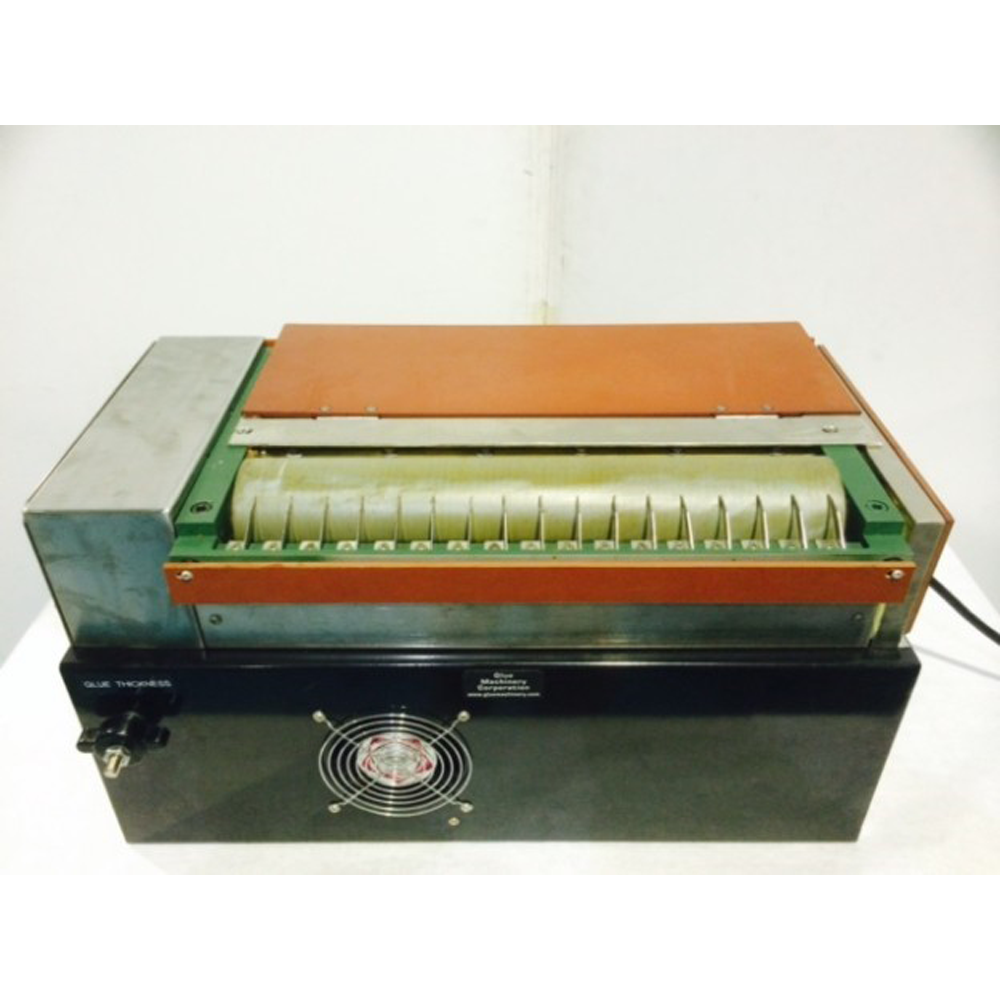

Industrial 16″ Hot Melt Roll coater with exposed coating wheel for the precise coating of blocks of material such as foam and wood with hot melt adhesive. The Hot Melt Coaters ensure product quality, accelerated production speeds, long term operation with minimal maintenance and operator friendly ergonomics.
Two zone temperature controls offer exact adhesive temperature and viscosity and no “adhesive stringing”. Maximum melt rate and high speed wheel maximize production speeds. Oversized drive motor and quality components minimize maintenance. Compact machine design allows for easy operator access from all sides.
| Model |
GHM 400-16 RC
|
| Tank Capacity | 1KG |
|
Max Apply Width
|
16″ inches |
|
Max Substrate Thickness
|
N/A |
|
Max Operation Temp.
|
428ºF / 220ºC |
| Max CPS | 20,000 |
|
Dimensions (L x W x H)
|
25.2″ x 13″ x 12.5″
|
| Power supply |
220Vac Single Phase
|
| Weight | 30.5kg |
| Dimensions |
930mm (L) x 340mm (W) x 880mm (H)
|
