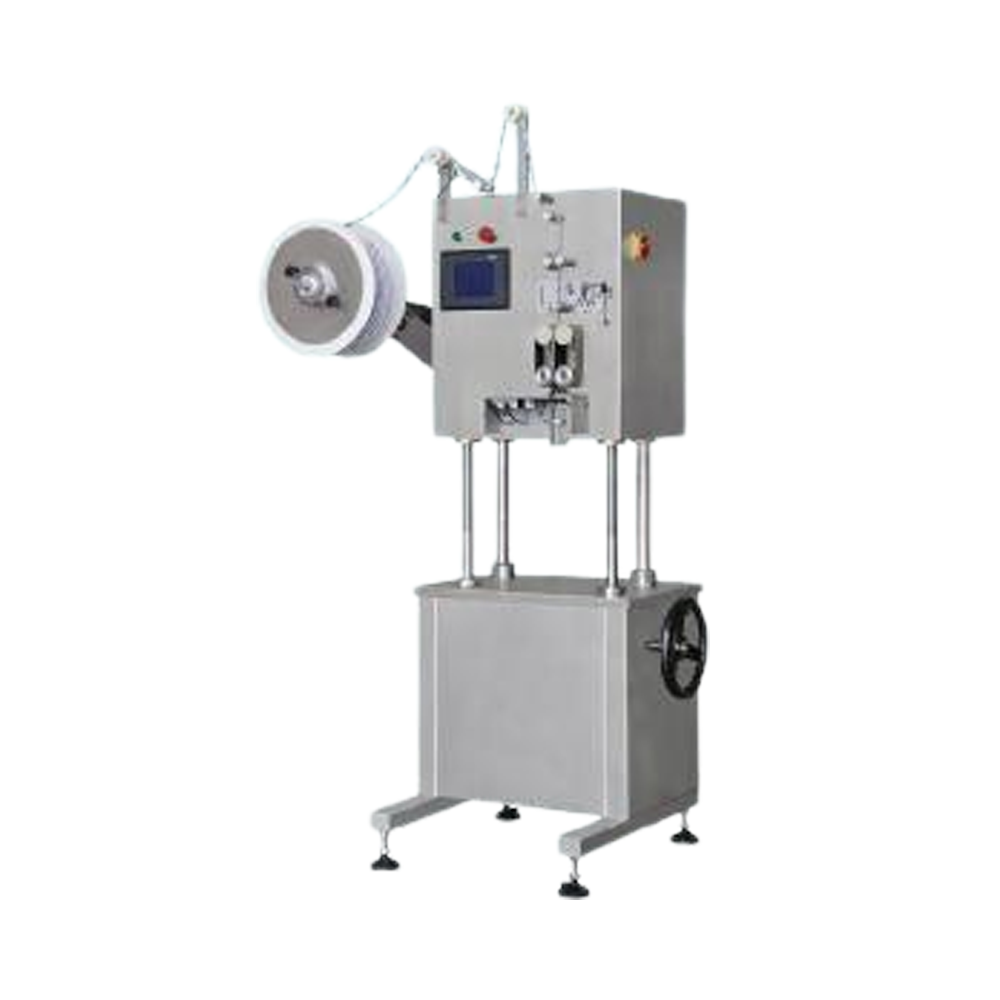

Automatic Desiccant Inserter Packaging Machine

RM9,999.99

Category:

Description

Fits for pharmaceutical, health-care, food industry, can cut continuous dry sac strip as per fixed length and insert into container automatically. Driven by double stepping motor, Detect sensor from Japan, if no bottle, no action. Automatic alarm and shutdown function, PLC control, touch screen as HMI, Compacted structure, easy to operate and maintain, Height can be adjusted to fit variable bottle size, U shaped detects e-eye, can accurately locate cutter position, It can be used single machine or on-line, It fits for pharmaceutical, health-care, food industry, can cut continuous dry sac strip as per fixed length and insert into container automatically, Driven by double stepping motor, Detect sensor from Japan, if no bottle, no action, Automatic alarm and shutdown function back to normal when the problems solved., PLC control, touch screen as HMI, easy to operate and maintain, Height can be adjusted to fit variable bottle size, It can be used single machine or on-line



MODEL GDI-150A
Capacity 60`150 (bottles /min)
Dimension 600~700~1800mm
Conveyor length
1800 mm
Bottle size Dia. „U40`„U100 mm Height 45`250 m

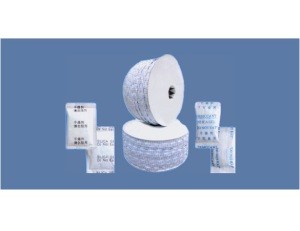

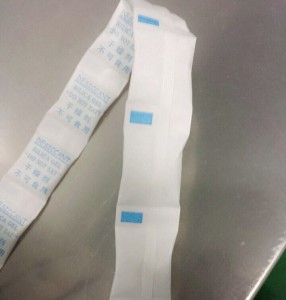

Specs of desiccant
width of cross section 5`30mm
Net Weight 150 Kg
Noise .75dB (A)
Compressed air
0.5Mpa
Power Supply AC220V 50Hz
Total power 500
