Description

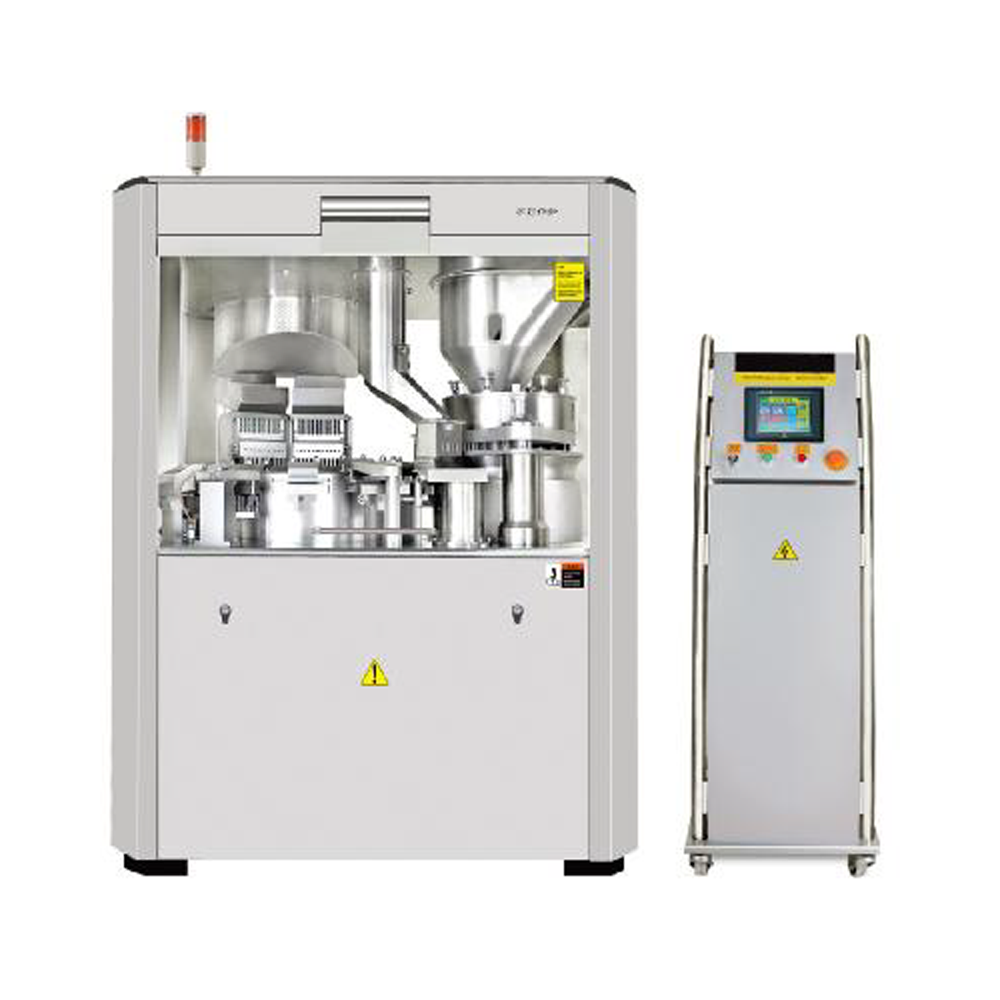

New structure twelve state totally closed batch type rotating floor. Vacuum feeding powder and capsule can be installed, which are controlled by the PLC touch screen, centralized operation and easy operation.
Five point adjust device has been simplified which make it easy to clean the powder and increase the work efficiency. Misplacement of module whole, increase the filling precision of powder, filling rod seat will occur big resistance when it working, in order to solve this problem, we have used the way of balance weight, to make sure the safe move of the machine. Automatic switch-over and control the capsule blanking and decrease manually operation, keeping with GMP certification.
Division box of RU180 which make sure steady and accurate transmission. Adapt column porosity cleaning module and avoid power leave. Arrangement mode of back and forth misplacement mould could improve the filling accuracy of power. Double compatible pellet device. Rejection function IQ/OQ with the machine.
| MODEL | GCF-2200F |
| Capacity | 132000pcs/hour |
|
Filling percentage
|
99% |
|
Capsule number
|
00-5# |
| Power (kw) | 380V 50Hz 5KW |
| Vacuum |
110m3/h -0.08~0.04Mpa
|
|
Machine dimensions
|
1200*1070*2100
|
| Weight (kg) | 1500 |
| Noise emission | < 73dB (A) |
