Description

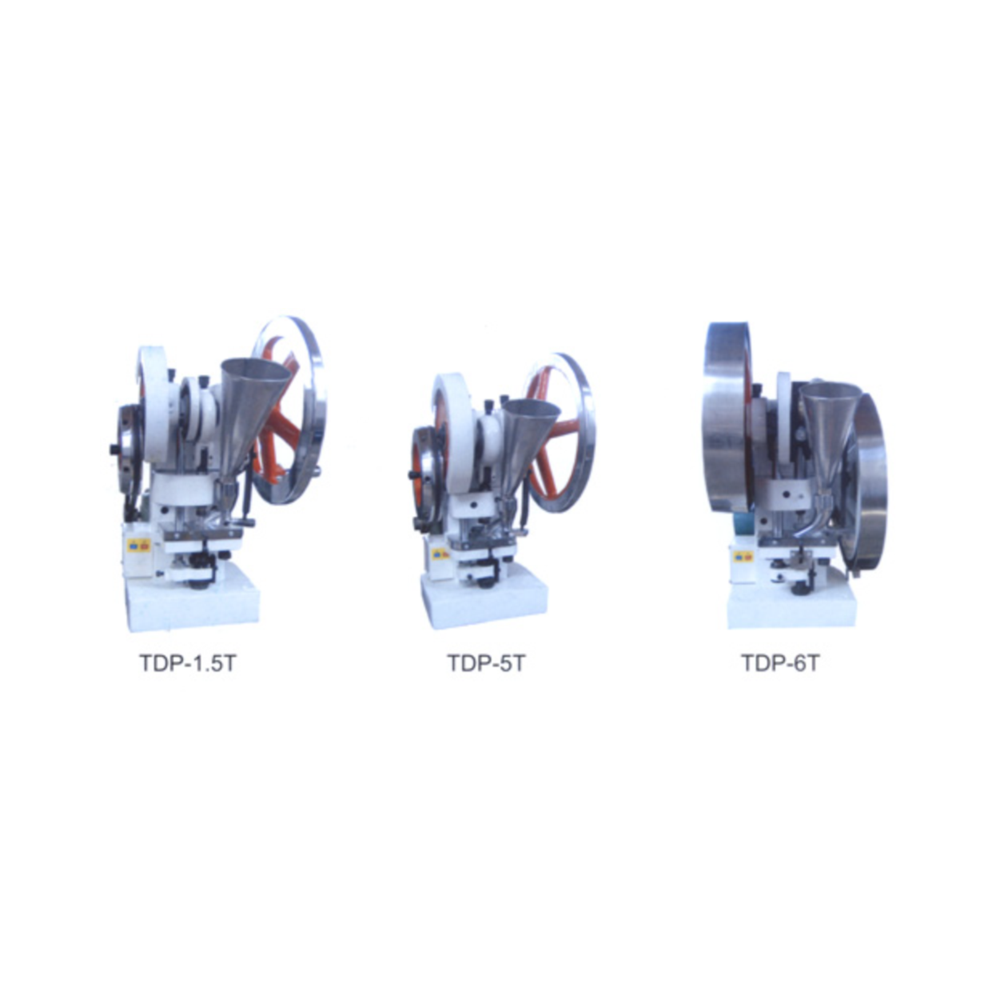

This machine is designed for pressing round tablets from various granular materials. Applicable used for research and development and to small-scale production. It is a small desk-top continuous press driven by motor or man-power. Only one set of punch and die is mounted, the depth of the filling material and the thickness of the tablets can be adjusted.
| Model | GTDP1.5T | GTDP-5T | GTDP-6T |
| Max. Pressure | 15 KN | 50 KN | 60 KN |
|
Max. Dia. of Tablet
|
Ø12mm | Ø20mm | Ø25mm |
| Max. Depth | 11mm | 17mm | 17mm |
| Output | 6000tablets/h | 4500tablets/h | 3000tablets/h |
| Motor power | 370w | 550w | 750w |
|
Rotational speed of motor
|
1400r/min | 1400r/min | 1400r/min |
| Net Weight | 70kg | 120kg | 148kg |
| Outline dim. | 580 x 450 x 625(mm) | 650 x 440 x 650(mm) | 750 x 380 x 695(mm) |
