Description

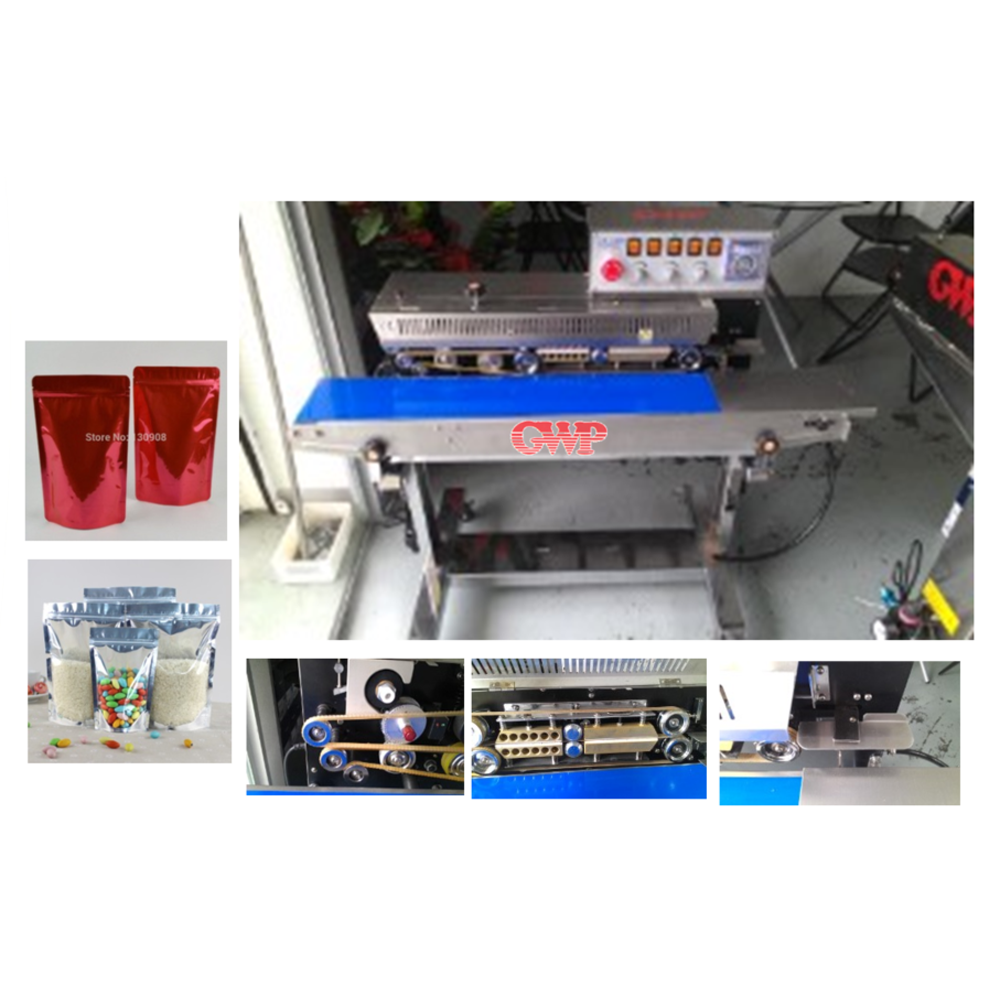

GCS-1000FRD-G series solid-ink coding continuous band sealer can seal all kinds of heat-sealable materials. It come with gas flushing device for products cushion protection. Solid-ink coding device is adopted to print the colored label on bag while sealing. If necessary, counting device can be equipped as well.
- Constant temperature control and step-less speed regulation.
- Temperature and height of conveyor table are adjustable.
- Solid-ink coding is characterized by high definition, various selectable colors, instant dry while printing, strong adhesive property.
| MODEL | GCS-1000FRD-G |
| Voltage (V/Hz) | AC 220/50 |
|
Motor Power (W)
|
235 |
|
Sealing Power (W)
|
220X2 |
|
Printing Heating Power (W)
|
40X2 |
|
Sealing Speed (m/min)
|
0-12 |
|
Temperature Range (ºc)
|
0~300 |
| Printing Type | Solid Ink Roller |
| Distance from Sealing Center to conveyor | 10-40 |
|
Conveyor Table Size (LxW) (mm)
|
930 x 153 |
|
Max. Conveyor Loading for Single Package
|
≤1 |
|
Overall Conveyor Loading (kg)
|
≤3 |
|
External Dimensions (LxWxH) (mm)
|
1050 x 560 x 900 |
|
Net Weight (kg)
|
62 |
