Description

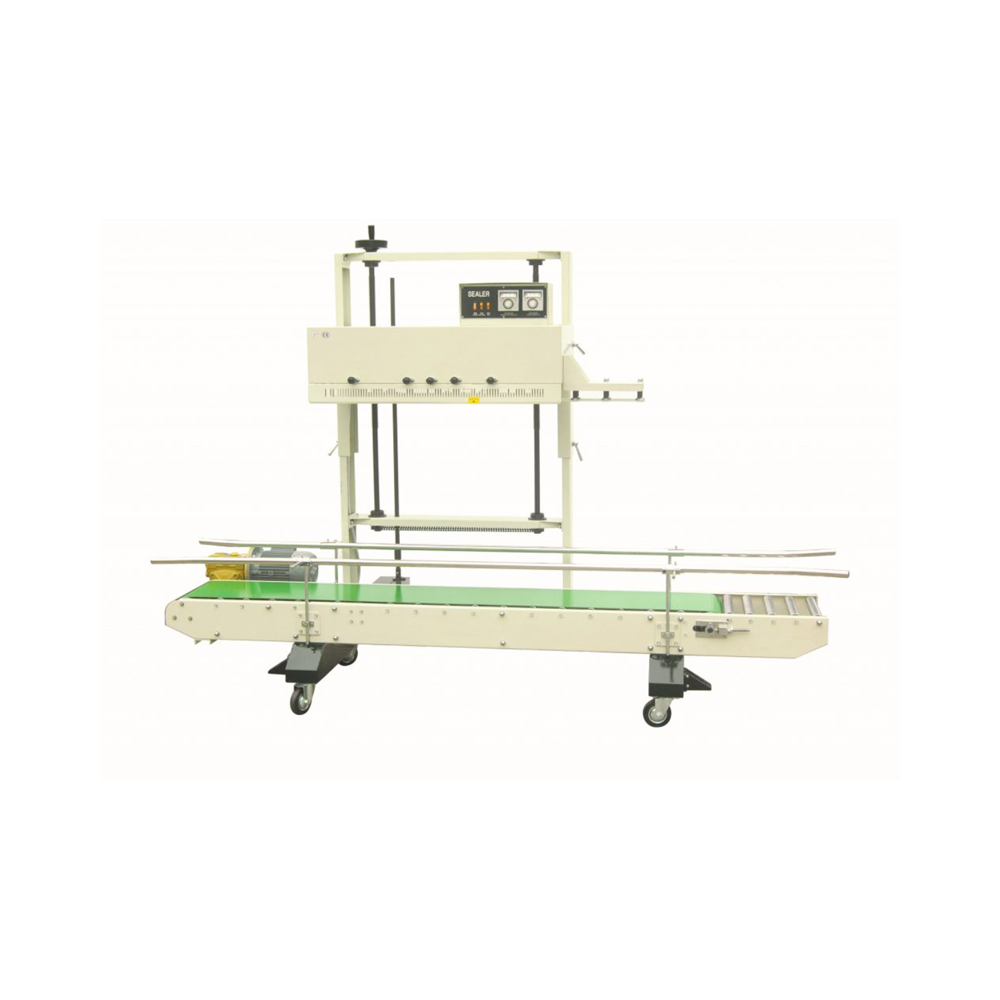

GCSM-1370AL/L series automatic continuous band sealer is specially designed for vertical sealing. According to different carrying load, such machine is divided into three models: S, M, L. with max. carrying load for single bag of 1kg,10kg and 25kg respectively. Moreover, the model GCVSM-1370AL/L can also be equipped with dry-ink coding system for color printing.
| MODEL | GCVSM-1370AL/L |
| Voltage | 220V / 50Hz |
| Total power | 1975W |
| Sealing speed | 8.8m/min |
| Sealing width | 6-12mm |
|
Temperature range
|
0-400°C |
|
Max. conveyor height
|
420-680mm |
|
Length of the table
|
2400 x 350mm |
|
Single conveyor loading
|
≤ 25kg |
|
Overall conveyor loading
|
≤ 75kg |
|
Dimension (L x W x H)
|
2430mm x 740mm x 1450mm
|
| Weight | 250Kg |
