Description

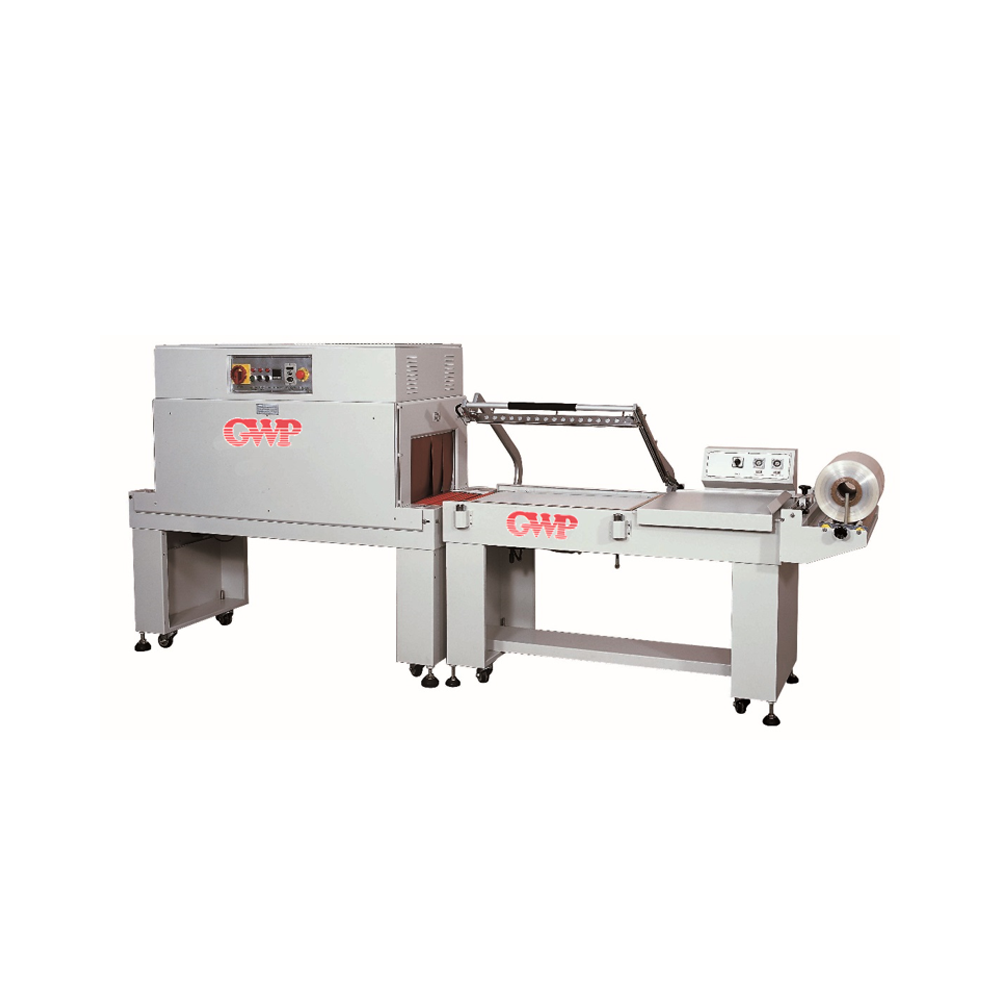

The series automatic sealing-shrinking machine is advanced overseas spiral blower technology, it’s use many famous factory’s fitting; with 1 type sealing machine achieves higher automation. Applicable to such shrinkable film as PVC, PP, POF, and PE, the shrink efficiency is special good.
Combination unit – system runs on one circuit, Works with all shrink film, but specially
Tunnel for non-PVC, polyolefin film, Temperature compensating solid state controllers.
Film clamps, Belt conveyor with variable speed and adjustable, Bottom heating
Quick change seal wire with tension assembly, Magnetic Hold On, High velocity turbo-tunnel
| MODEL | GSM-5045A | GSM-4025A |
| Power supply | 240V 1 Phase 50Hz | 415V 3 Phase 50Hz |
| Power | 2Kw | 10Kw |
| Sealing size | 550 x 450 | – |
| Tunnel size | – | 400 x 250mm x Unlimited |
| Products size | 500mm (L) x 420mm (W) | 350 x 160mm |
|
Work efficiency
|
400 – 800pcs/h | 2000 – 3000pcs/h |
| Dimension | 1400 x 700 x 1000mm | 1350 x 620 x 1380mm |
