Description
Used for packing the beverage, beer, battery, hardware, electronic appliance and etc.

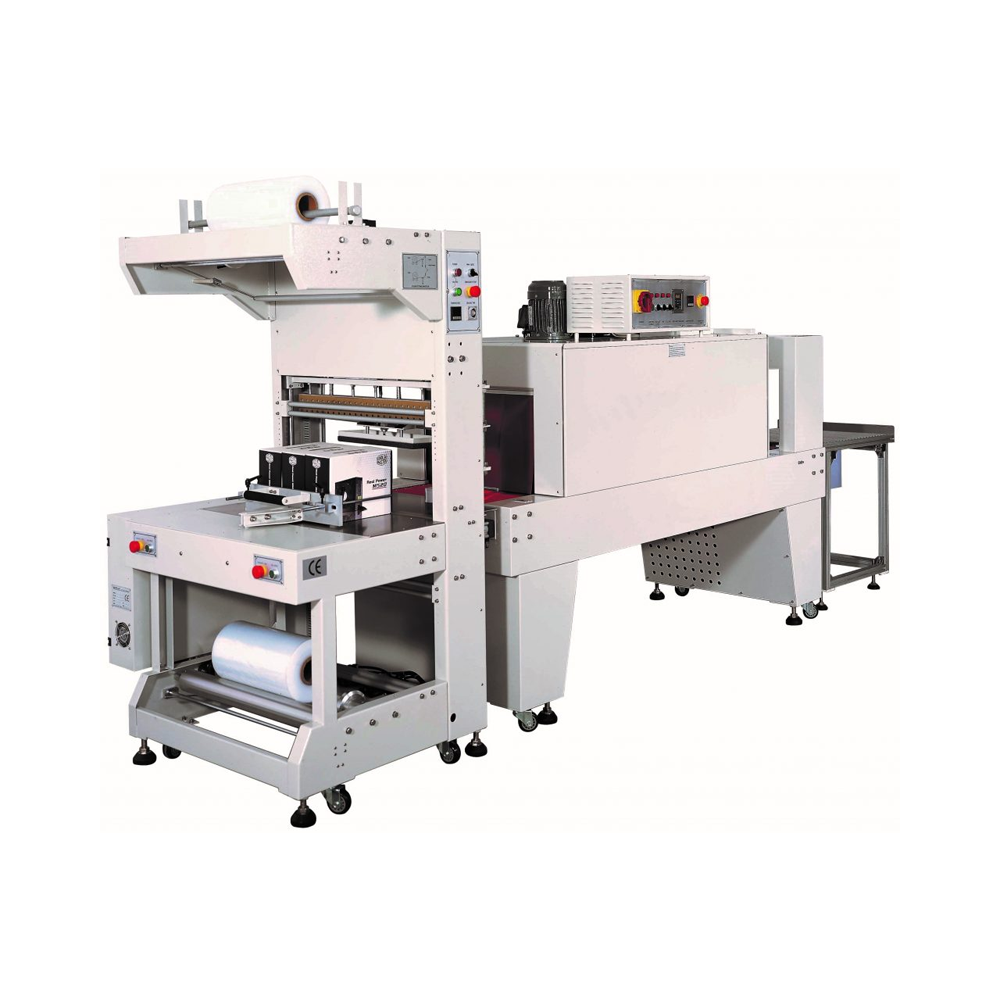

GST-6040 is a type of economic one among ST series wrapping machine, simple operation, push the products manually or pneumatically, sealing the film and the product enter the shrink tunnel automatically used PE Film packer
GST-6040 adopts the imported air cylinder, assure stable pushing & sealing
Adopts specially designed sealing cutter results in perfect sealing line avoid the film from sticking to the cutter Adopts imported electric parts assure the steady performance
The covered cylinder setting enhance the convenience for the operator, with rear pressing device assure even light product without any shifting
The front frame is adjustable according to different product size
| MODEL | GST-6040 | GSM-6040 |
|
Max Product Size
|
L500mm x W600mm x H400mm | / |
|
Max Packing Speed
|
5-8 packs/min (according to the seize of packed products) | / |
| Power Supply | 3 PH 415Volt 50Hz 1.8Kw | 3 Ø220v / 415V 50/60Hz |
| Applicable film | PE | |
|
Machine Dimension
|
/ | 2900mm (L) x 1205mm (W) x 1670mm (H) |
|
Max. packaging dimension
|
/ | 1200mm (L) x 600mm (W) x 400mm (H) |
|
Sealing cutter / tunnel size
|
/ | 600mm (L) x 600mm (W) x 400mm (H) |
| In-feed conveyor height | / | 850mm ± 50 |
|
Sealing temperature
|
/ | 0-300°C |
|
Working efficiency
|
/ | 20-25 pcs per minute |
| Rated power | / | 18kw |
| Net weight | / | 550kg |
| Film used | / |
LDPE Shrinkable Film
|
